5KWH Home battery backup with solar power system
Contact us to receive our latest catalog, product specifications, and factory-direct pricing.
WhatsApp: +86 180 2875 7828
Email: ldxdldxd3@gmail.com

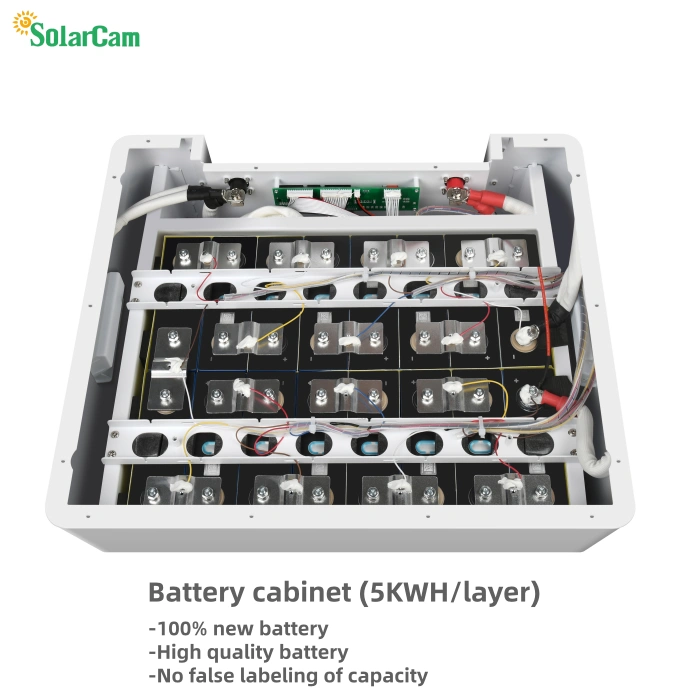

◆ Built-in 5KWh battery (100% new LiFePO4 battery)
◆ Support WiFi and Bluetooth connection
◆ Support APP or PC monitoring the battery state of charging and discharging.
◆ Support button screen operation

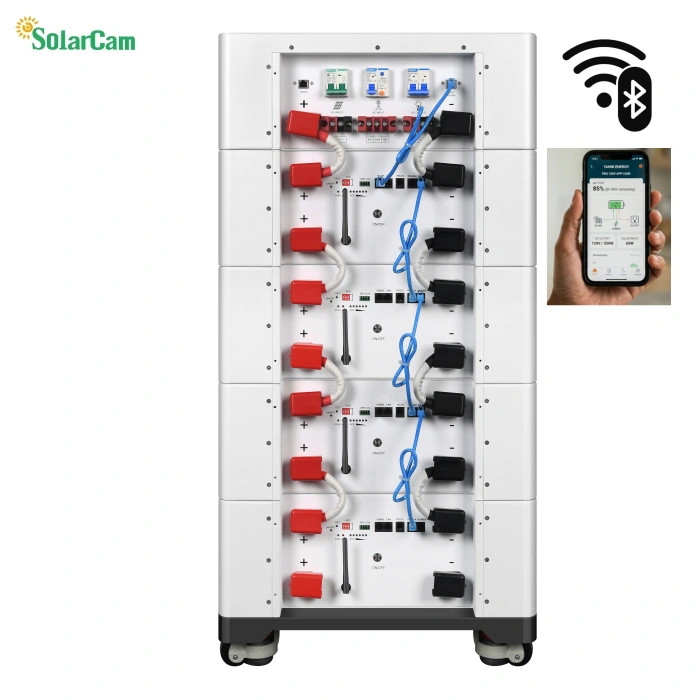

◆ Modern aesthetically pleasing flat industrial design, modular design for easy installation;
◆ MPPT charging efficiency up to 99%, highly efficient utilization of photovoltaic energy;

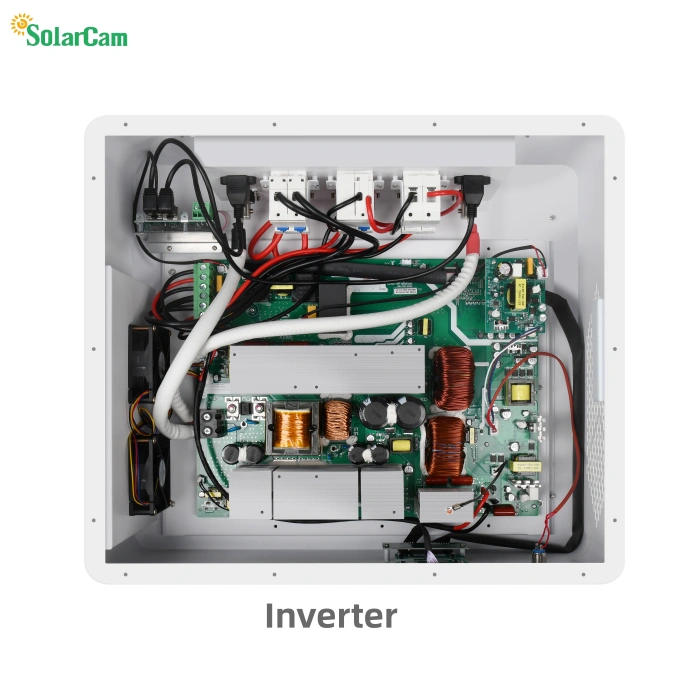

◆ Integrated hybrid inverter and lithium iron phosphate battery, safe and reliable, with a lifespan of over 2000 cycles (over 10 years);
◆ High-quality pure sine wave output;
◆ Leading intelligent applications: peak shaving and valley filling, intelligent load, AC coupling, etc.;
◆ Multiple charging modes, suitable for photovoltaic charging and mains charging;
◆ Built-in intelligent BMS, providing comprehensive protection and natural cooling.
◆ Lightning protection design to protect the battery from damage
YN30-6.2KW-5KWH Specification
Function Overview

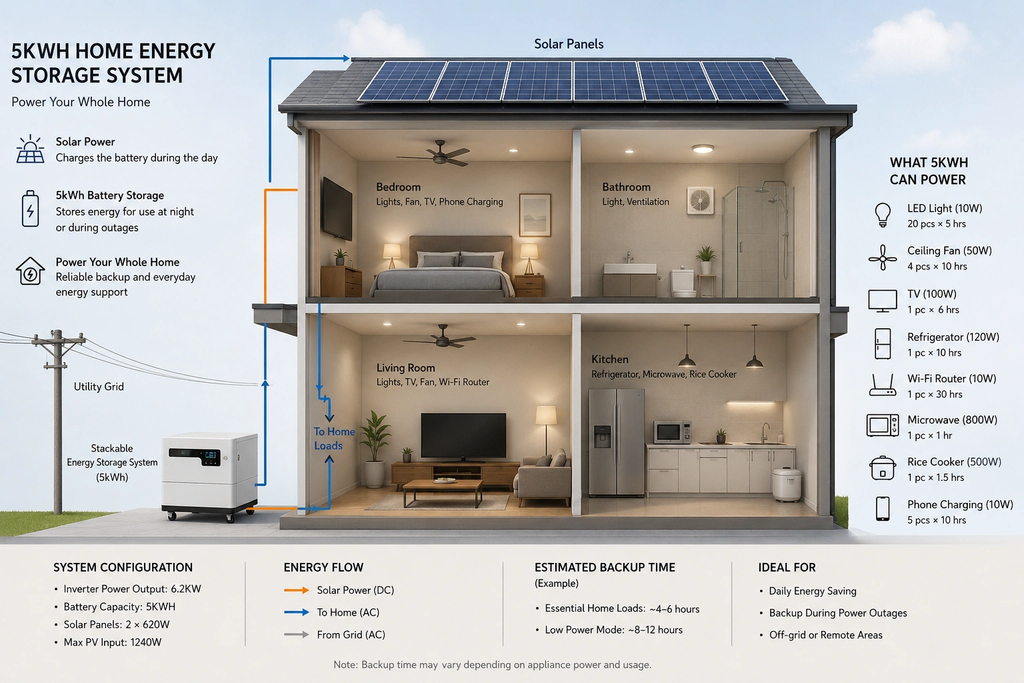

1. Heavy-Duty Appliances (Whole-Home Coverage)
With 6200W of rated power, this system can handle multiple high-drain appliances simultaneously: Climate Control: Multiple air conditioning units (including large 3-ton split systems or central AC), electric heaters, and floor heating. Kitchen: Heavy-duty induction hobs, built-in ovens, large dishwashers, and high-wattage espresso machines. Laundry: Washer-dryer combos (including the heating cycle for drying). Water Heating: High-power electric water heaters (typically 3kW–5kW).
2. Sensitive & Professional Electronics
Pure Sine Wave Output: Provides clean energy identical to (or better than) the grid, making it safe for high-end audio systems, gaming PCs, and medical equipment. UPS-Grade Switching (≤20ms): Acts as an Uninterruptible Power Supply. If the grid fails, your servers, routers, and security systems will remain online without rebooting.
3. High-Impact & Industrial Tools
Startup Loads: The 12,400W peak power is specifically designed to handle the "kick" required by motorized tools like air compressors, water pumps, and circular saws. EV Charging: It can provide a significant charge to an Electric Vehicle via a standard home AC charger.
Home Battery Backup Specification
| Parameter | Specification |
|---|---|
| Item No. | YN30-6.2KW-5KWH~20KWH |
| AC Output Power | 6200W (6.2KW) |
| Peak Power | 12400W |
| AC Output Voltage | 230V±5% (customizable 110~120V) |
| AC Output Frequency | 50/60Hz±0.1% |
| AC Waveform | Pure sine wave |
| Switching Time | ≤20ms |
| Mains Input Voltage | AC220/230/240V; AC90-280V±3V (APL mode); 50Hz/60Hz (Auto-adaptive) |
| Mains Input Maximum Current | 100A |
| Solar Input Maximum Power | 8500W |
| Solar Input Voltage | AC60-500V |
| Solar Input Maximum Current | 120A |
| Battery Type | Lithium iron phosphate battery |
| Battery Capacity | 5120Wh (5.12 kWh) |
| Battery Standard Voltage | 51.2V |
| Nominal Capacity | 100A |
| Cycle Count | 3000 cycles |
| Full Charge Voltage | 58.4V±0.2V |
| Over-Discharge Protection Voltage | ≤40.0V |
| Over-Temperature Protection | ≥85℃ |
| Over-Temperature Recovery | ≤70℃ |
| LED Display Content | Displays operating mode/load/input/output |
| Static Power Consumption | <2W (no connected device) |
| Protection Functions | Short circuit, overload, overtemperature, overvoltage, overcurrent, overcharge, over-discharge (undercharge), etc. |
| Optimal Operating Temperature | 10~35℃ |
| Discharge Ambient Temperature | -30~60℃ |
| Charging Ambient Temperature | -20~55℃ |
| Inverter Cabinet Weight | 16.9kg |
| Inverter Cabinet Dimensions | Length 510mm × Width 440mm × Height 182mm |
| Battery Cabinet Weight | 45.6kg×1 |
| Battery Cabinet Dimensions | Length 510mm × Width 440mm × Height 182mm×1 |
| Total Weight/KIT | 64.5KG (With roller bracket) |
| Full KIT Dimensions | Length 510mm × Width 440mm × Height 464mm |

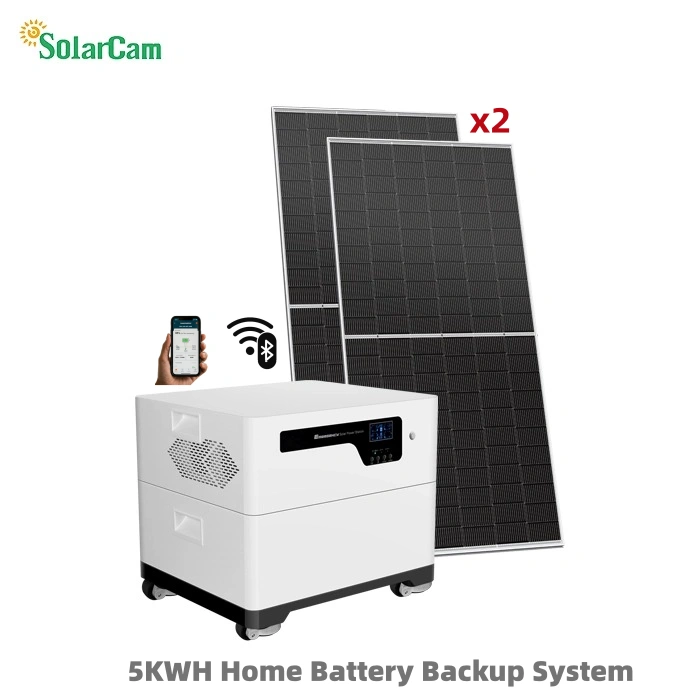

Solar Power Supply System Specification
| Parameter | Specification |
|---|---|
| Item No. | YN30-GFB-620W-36V |
| Solar panel power | 620W ×2pcs (Total 1240W) |
| Solar panel voltage | 40V |
| Solar panel size | 2382×1134×30mm |
| Optimal Operating Temperature | -40~+85℃ |
| Weight | 33.0KG |
Applications: Home, office, school, hotel, homestay
